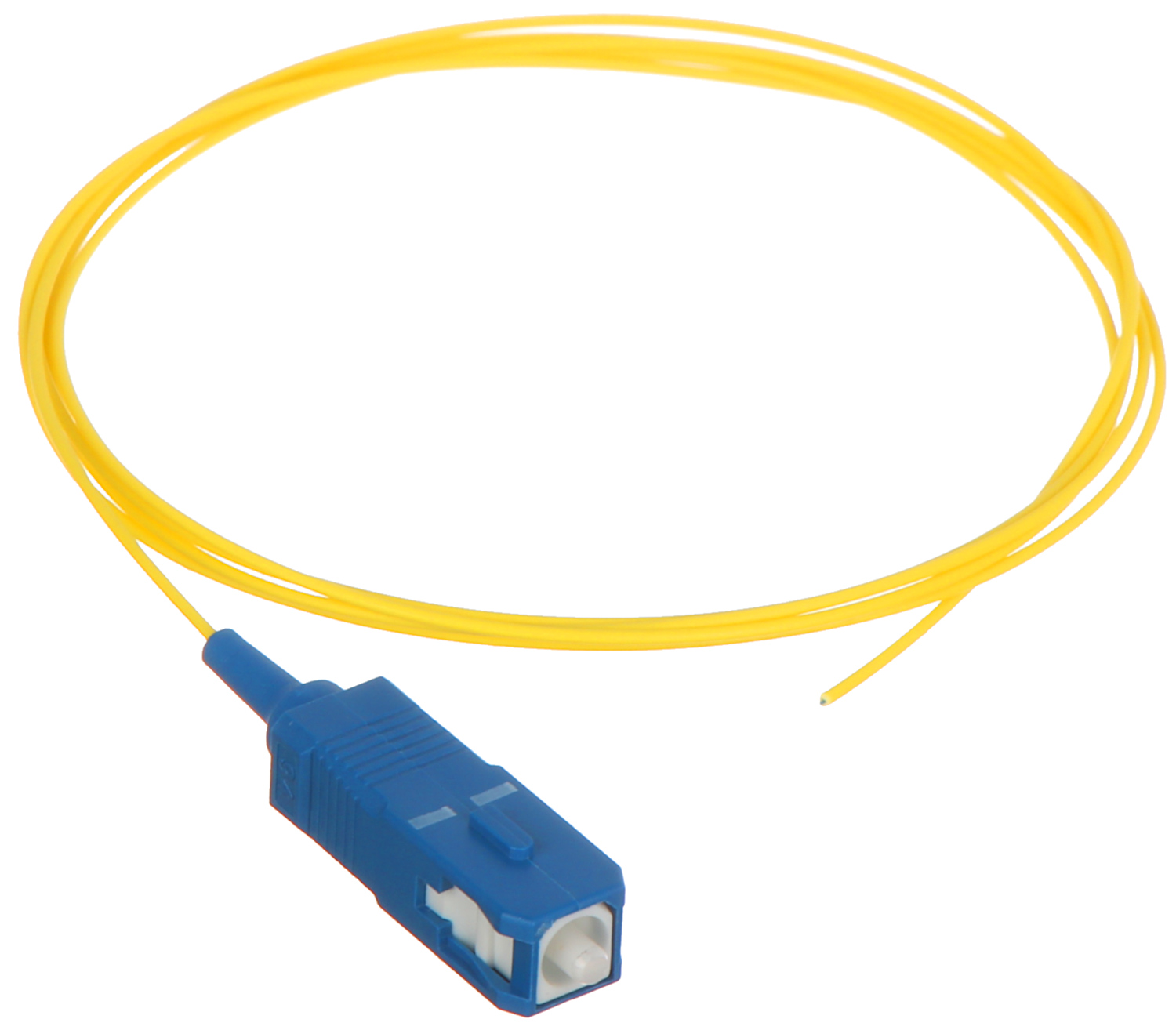

Pigtail SC-APC-PC - Custom Available

DETAILS

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A), MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm, 850±30/1300±30nm
Insertion Loss (dB)	≤0.25dB (PC/UPC/APC) ≤0.3dB (PC/UPC) (TIA/EIA-455-107)
Return Loss (dB)	≥50dB (PC/UPC) ≥60dB (APC) (TIA/EIA-455-107) ≥40dB (PC/UPC)
Exchangeability	≤0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)	-10~ +70
Storage Temperature (°C)	-40 ~ +85
Package	1 unit/bag
*All values specified are with connectors.
